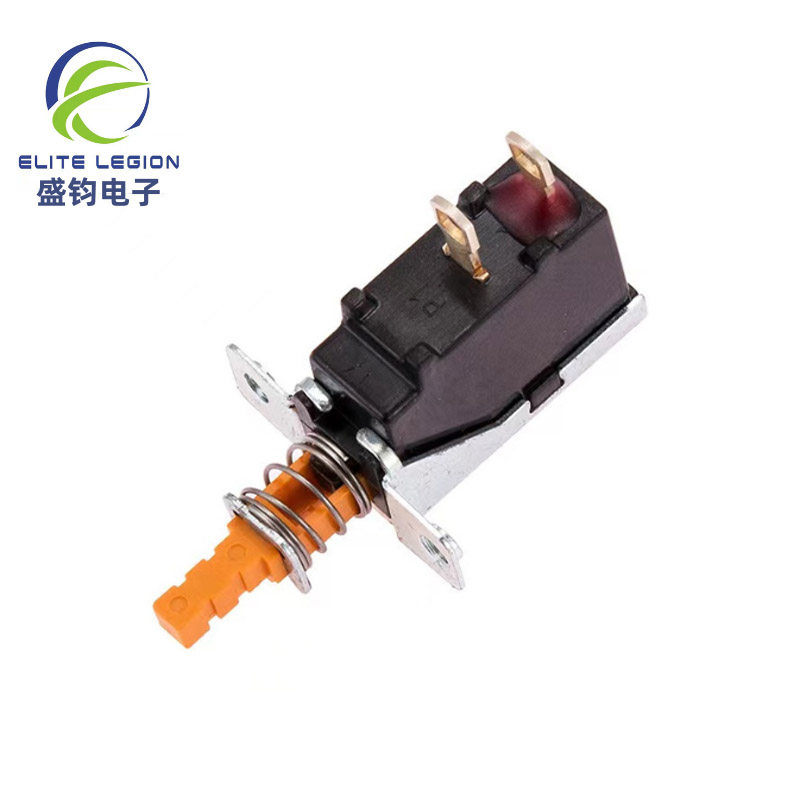

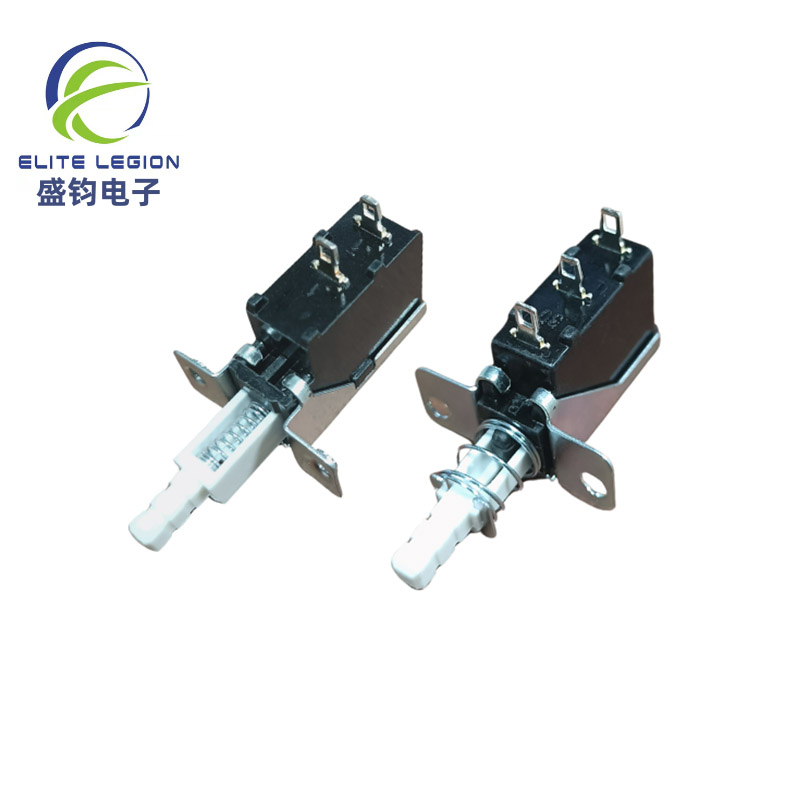

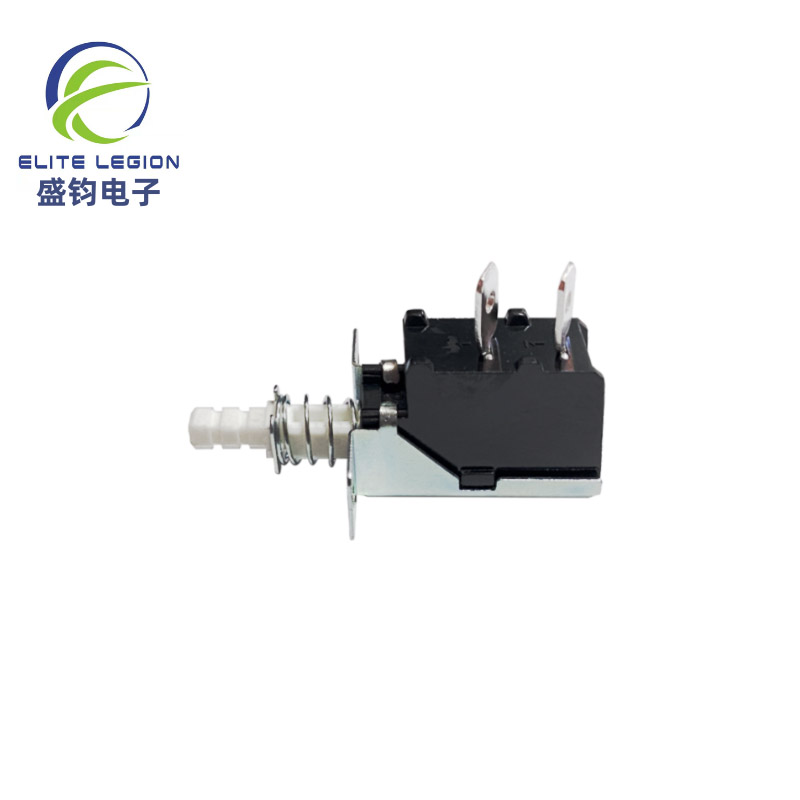

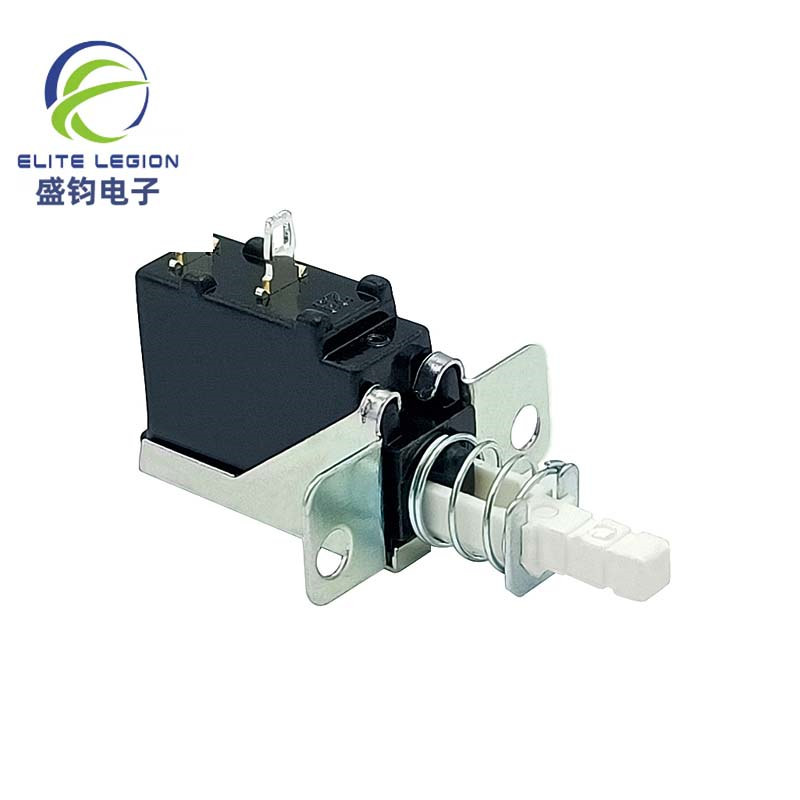

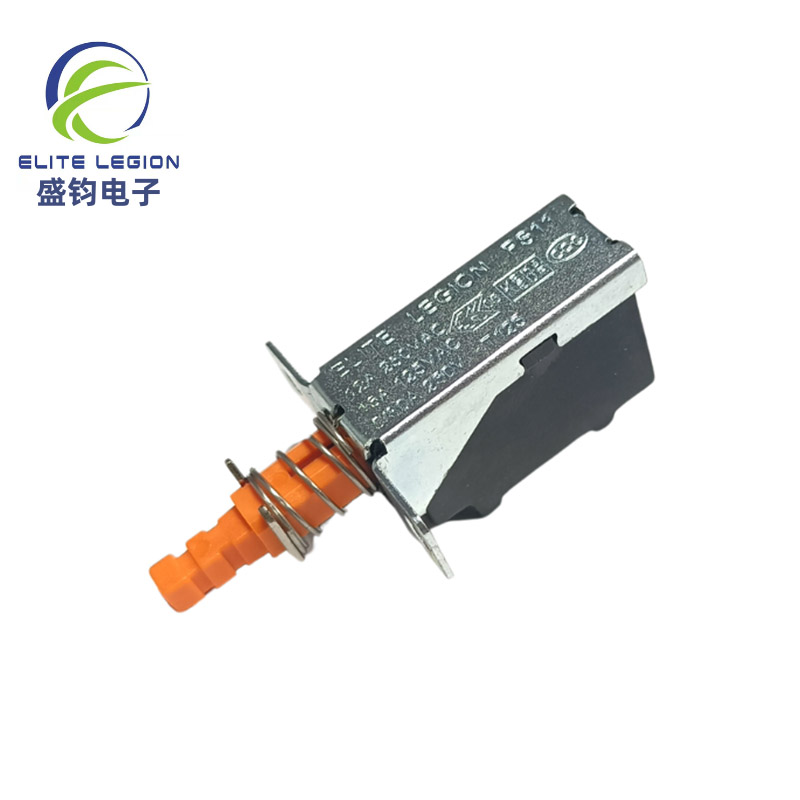

Unlocking and Self Locking Push Switch
  • Unlocking and Self Locking Push SwitchUnlocking and Self Locking Push Switch
  • Unlocking and Self Locking Push SwitchUnlocking and Self Locking Push Switch
  • Unlocking and Self Locking Push SwitchUnlocking and Self Locking Push Switch
  • Unlocking and Self Locking Push SwitchUnlocking and Self Locking Push Switch
  • Unlocking and Self Locking Push SwitchUnlocking and Self Locking Push Switch

Unlocking and Self Locking Push Switch

ELITE LEGION is a professional Unlocking and Self Locking Push Switch manufacturer and supplier in China, factory directly supplies push button switches, you don't have to worry about quality or after-sales service, we will provide you with the most favorable factory prices and good service. Our switches are exported to many countries in Europe and America, if you need push switch or other switches such as rotary switch, anti-tipping switch,rocker switch etc, please feel free to contact us!

Send Inquiry

Product Description

ELITE LEGION push switch has two functions: self-locking and unlocking. Our button switches has three current specification of, 5A, 12A, and 16A for customers to choose from. The electrical life of can reach at least 10000 cycles. As a high-quality Unlocking and Self Locking Push Switch in China,all the materials we purchase must pass the relevant inspection of the quality control department before they can be used to ensure the safety and fire prevention of the materials used. In the production process, we will control the quality layer by layer.


Product Specification Of ELITE LEGION 16A Unlocking and Self Locking Push Switch:

Brand

ELITE LEGION

Model

PS11 Series

Rating

5A 125/250VAC

12A 250VAC

16A 125VAC

Operating Function

Self locking

Unlocking

Terminal Types

Long

Short

Housing Types

Hole typeΦ3.2

Screw type M3x0.5

Initial Contact Resistance

50mΩ Max

Insulation Resistance

100MΩ 500VDC

Withstand Voltage

Between terminal and metal housing 0.5mA 3000VAC/Min.

Between the terminal 0.5mA 1500VAC/Min.

Electrical Life

10000 Cycles Min


Examples of specifications:


Feature And Application Of ELITE LEGION Unlocking/Self Locking Push Switch:

2 pins, 3 rating specifications(5A,12A,16A)


3 pins, 2 rating specifications(5A,12A)


4 pins,rating:5A


This push switch is widely used in fans, Audio equipment, range hoods, medical equipment, and water dispensers,


Details Of ELITE LEGION Self Locking / Unlocking Push Switch:


Q&A

Q: Can you give me samples to test and how many samples?

A: Yes, we can provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 1~10 pcs. Q: What is the delivery time?

A: 3-7 days for samples; 15-30 days for batch goods.

Q: Is there cheap shipping cost to our country? A: For small order, express will be best,and for bulk order, shipping by sea is better, but it takes much time.

Q: What is your MOQ?

A: In general ,our MOQ is 500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.

Q: Can you accept OEM or ODM?

A: Yes, we can accept OEM and ODM, but please offer your authorization certification.


Using Tips

1 When welding, any pressure applied to the terminals may cause conditions as looseness,deformation of terminals and electrical degradation.

2 For second time welding job, please proceed welding after it is recovered to room temperature. Continuous heating may cause loose off, deformation of terminals and electrical degradation.

3 When welding, water-soluble flux may causes corrosion to switches.

4 Don’t clean it with water.

5 After final assembly as a completed product, please make sure that there’s no erosion gas/materials released from peripheral parts/materials as it may causes contact failure of switches.

6 Keep it storage under normal temperature, humidity and prevent from direct sunshine,erosion gas. Products sure be used within 6 months.

7 For small quantity which taken from main packages, please keep it in plastic bags and sealed. And have it storage under up-mentioned environment.
