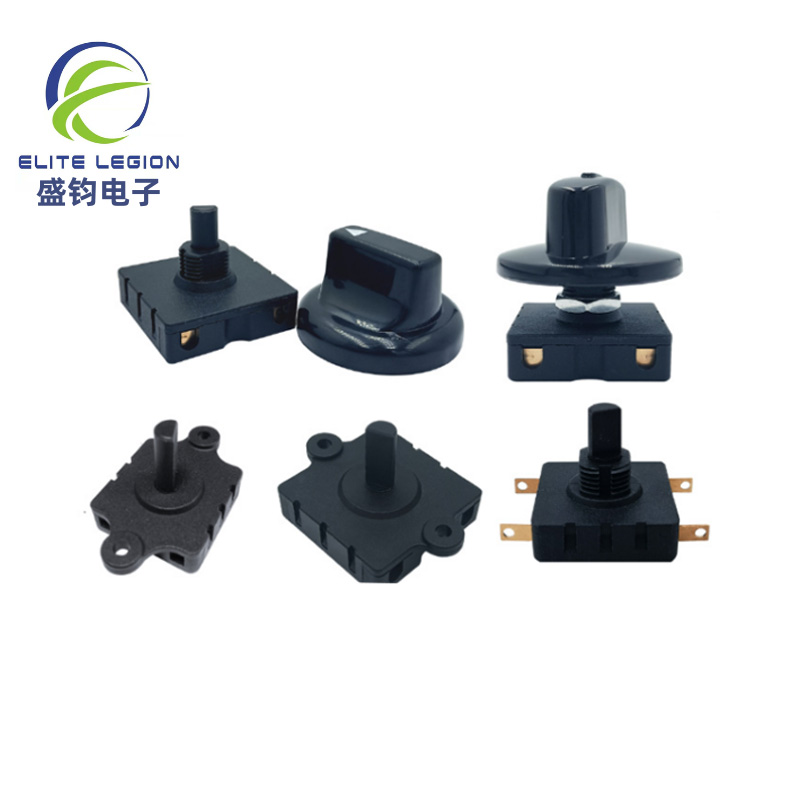

6A-10A Fan Rotary Switch
  • 6A-10A Fan Rotary Switch6A-10A Fan Rotary Switch
  • 6A-10A Fan Rotary Switch6A-10A Fan Rotary Switch
  • 6A-10A Fan Rotary Switch6A-10A Fan Rotary Switch
  • 6A-10A Fan Rotary Switch6A-10A Fan Rotary Switch
  • 6A-10A Fan Rotary Switch6A-10A Fan Rotary Switch

6A-10A Fan Rotary Switch

ELITE LEGION is a professional China 6A-10A Fan Rotary Switch,air cooler rotary switch and heater rotary switch manufacturer with high quality and reasonable price. Welcome to contact us, we look forward to becoming your long-term partner. Our rotary switches have been widely used in domestic and foreign electrical appliances, and the quality has been unanimously recognized by customers.

Send Inquiry

Product Description

China Factory Directly Supply Fan Rotary Switch. ELITE LEGION is a large-scale fan Speed control switch and air cooler switch manufacturer in China. ELITE LEGION rotary switch can meet many applications, if you need , please get our online timely service about rotary switch. The 6A-10A fan rotary switch are made of environmentally friendly materials, and safety approved by ENEC, CB, and CQC,. In addition to the function list below, you can also customize function according to your needs.


Product Specification Of ELITE LEGION 6A-10A Fan Rotary Switch:

Brand

ELITE LEGION

Model

FR01 Series

Rating

10(2)A 125/250V~ T125

6(2)A 125/250V~ T125

3(2)A 125/250V~ T125

Size(length x width)


25X25mm

32X32mm

Rotation Angle

45°

Function Type

Normal Function

Momentary Function

Installation method

Nut

Screw

Operating Force Option

1100±200gf

1000±200gf

600±200gf

Initial Contact Resistance

50mΩ Max

Insulation Resistance

> 100MΩ 500VDC

Withstand Voltage

1500VAC/Min

Electrical Life

10000 Cycles


Example of specification diagram for one of the features(32X32mm)


Example of specification diagram for one of the features(25X25mm)


Feature And Application Of ELITE LEGION 6A-10A Fan Rotary Switch

1 speed: OFF - L1:


2 speed:

FUNCTION 1: OFF- L1 - L2

FUNCTION 2: L1 - L2 - L3

FUNCTION 3: OFF - L1 - L1,L2

FUNCTION 4: PUSE(L1) - OFF - L3


3 speed:

FUNCTION 1: OFF - L1 - L2 - L3

FUNCTION 2: PUSE(L1) - OFF - L3 - L1

In addition to existing features, we also support customized features. This 6A-10A rotary switch is suitable for fan,air coolers, blender,Cotton candy machine, clock etc.


Details Of ELITE LEGION 6A-10A Fan Rotary Switch:



Q&A

Q: Can you give me samples to test and how many samples?


A: Yes, we can provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 1~10 pcs.

Q: What is the delivery time?

A: 3-7 days for samples; 15-30 days for batch goods.

Q: Is there cheap shipping cost to our country?

A: For small order, express will be best,and for bulk order, shipping by sea is better, but it takes much time.

Q: What is your MOQ?

A: In general ,our MOQ is 500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.

Q: Can you accept OEM or ODM?

A: Yes, we can accept OEM and ODM, but please offer your authorization certification.


Using Tips

1 When welding, any pressure applied to the terminals may cause conditions as looseness,deformation of terminals and electrical degradation.


2 For second time welding job, please proceed welding after it is recovered to room temperature. Continuous heating may cause loose off, deformation of terminals and electrical degradation.

3 When welding, water-soluble flux may causes corrosion to switches.

4 Don’t clean it with water.

5 After final assembly as a completed product, please make sure that there’s no erosion gas/materials released from peripheral parts/materials as it may causes contact failure of switches.

6 Keep it storage under normal temperature, humidity and prevent from direct sunshine,erosion gas. Products sure be used within 6 months.

7 For small quantity which taken from main packages, please keep it in plastic bags and sealed. And have it storage under up-mentioned environment.
