3 Pins 2 Speed Rotary Switch
  • 3 Pins 2 Speed Rotary Switch3 Pins 2 Speed Rotary Switch
  • 3 Pins 2 Speed Rotary Switch3 Pins 2 Speed Rotary Switch
  • 3 Pins 2 Speed Rotary Switch3 Pins 2 Speed Rotary Switch
  • 3 Pins 2 Speed Rotary Switch3 Pins 2 Speed Rotary Switch
  • 3 Pins 2 Speed Rotary Switch3 Pins 2 Speed Rotary Switch

3 Pins 2 Speed Rotary Switch

China rotary switch factory directly supply 3 Pins 2 Speed Rotary Switch. ELITE LEGION is a famous rotary switch manufacturer and supplier in China, we have rich experience and professional technical personnel,we have the ability to accept feature customization.If you need rotary switches or other switches, welcome to contact us.

Send Inquiry

Product Description

ELITE LEGION as China famous Rotary switch supplier has been focusing on rotary switch many years, welcome to wholesale high quality rotary switch from ELITE LEGION, we will provide you with factory discount prices for our switches. The function of 3 Pins 2 Speed Rotary Switch is OFF-1-2,if you are interested in this 3 position 2 speed rotary switch,please fee free to contact us.


Product Specification Of ELITE LEGION 3 Pins 2 Speed Rotary Switch:

Brand

ELITE LEGION

Model

MFR01-A1F02L1S-N

Rating

12(3)A125/250V T125μ

Rotation Angle

36°

Diameter

32mm

Function Type

OFF-1-2

Initial Contact Resistance

50mΩMax

Insulation Resistance

> 100MΩ500VDC

Withstand Voltage

1KVAC/Min

Electrical Life

10000 Cycles Min


Feature And Application Of ELITE LEGION 3 Pin 2 Speed Rotary Switch:

The 3 Pin 2 Speed Rotary Switch has been widely used in blenders, juicers, FFU, meat grinders, air cooler, toys, lighting, etc.


Function List

Normal Function:

2 position 1 speed: OFF-1

3 position 2 speed: OFF-1-2

4 position 3 speed: OFF-1-2-3

5 position 4 speed: OFF-1-2-3-4

6 position 5 speed: OFF-1-2-3-4-5

7 position 6 speed: OFF-1-2-3-4-5-6

8 position 7 speed: OFF-1-2-3-4-5-6-7

9 position 8 speed: OFF-1-2-3-4-5-6-7-8

10 position 9 speed: OFF-1-2-3-4-5-6-7-8-9

10 position 10 speed: OFF-1-2-3-4-5-6-7-8-9-OFF...(360°rotation)


Momentary Function(Non-lock):

3 position 2 speed: Pause-OFF-1

4 position 3 speed: Pause-OFF-1-2

5 position 4 speed: Pause-OFF-1-2-3

6 position 5 speed: Pause-OFF-1-2-3-4

7 position 6 speed: Pause-OFF-1-2-3-4-5

8 position 7 speed: Pause-OFF-1-2-3-4-5-6

9 position 8 speed: Pause-OFF-1-2-3-4-5-6-7

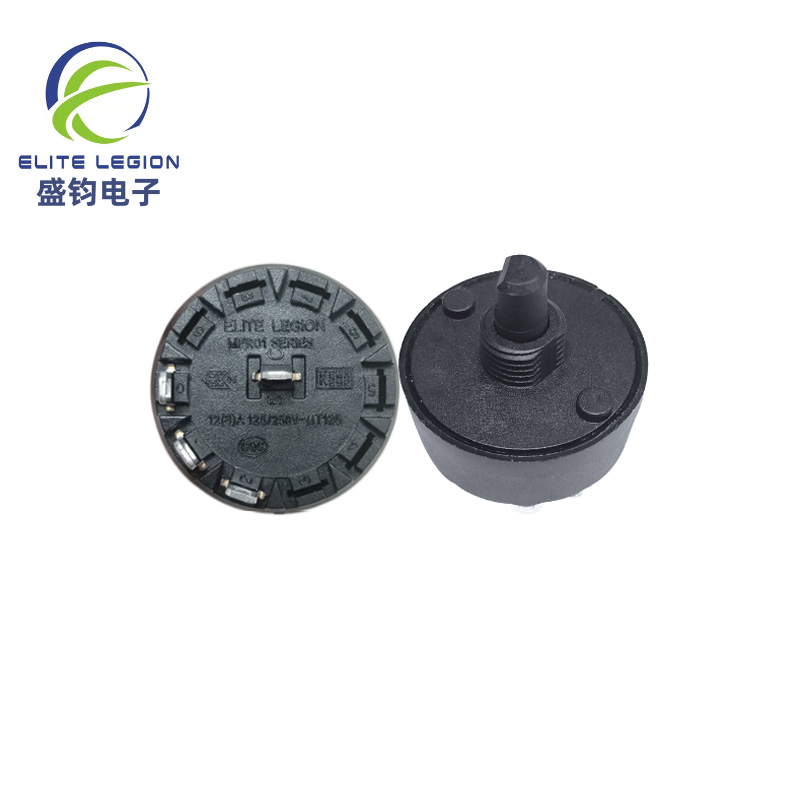

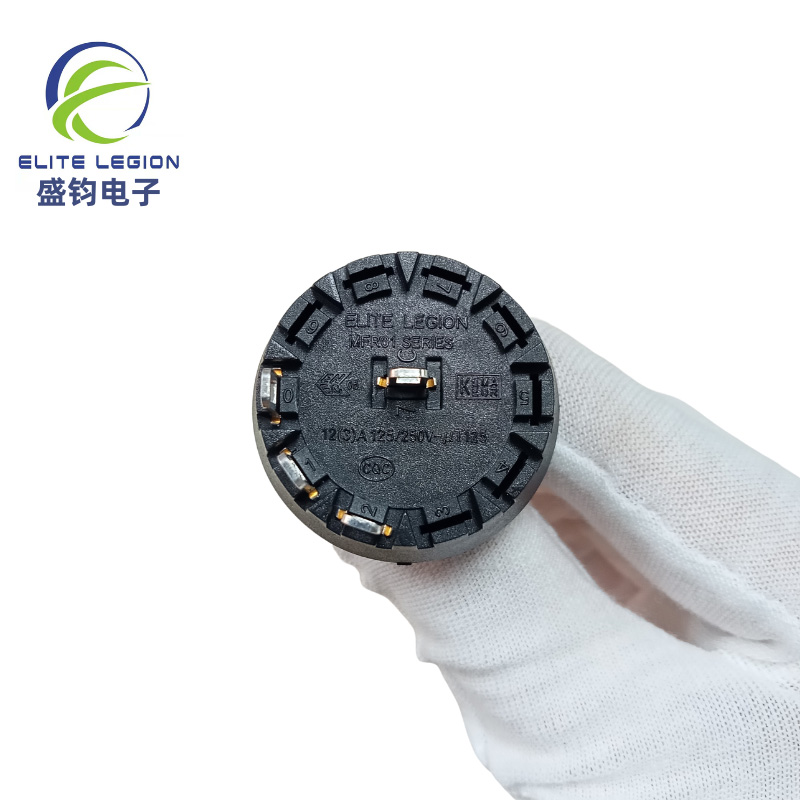

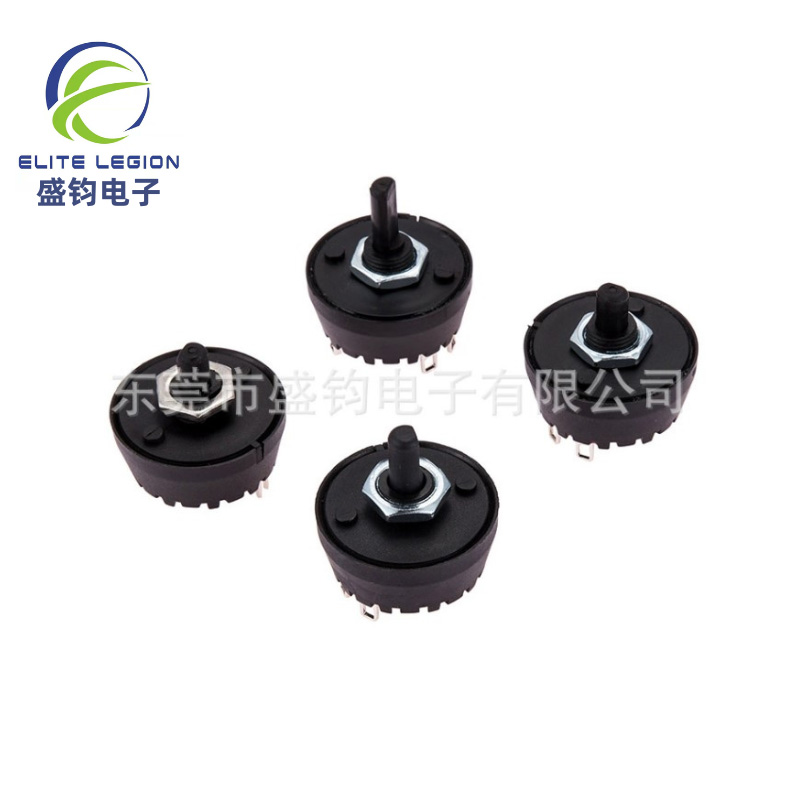

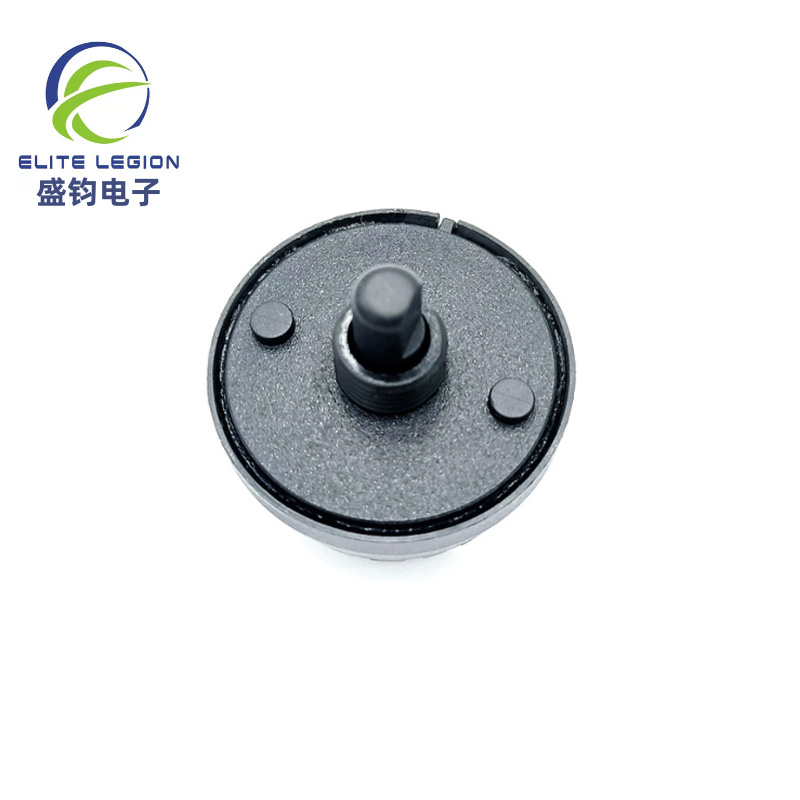

Details Of ELITE LEGION 3 Pin 2 Speed Rotary Switch:


Q&A

Q: Can you give me samples to test and how many samples?

A: Yes, we can provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 1~10 pcs.

Q: What is the delivery time ?

A: 3-7 days for samples; 15-30 days for batch goods.

Q: Is there cheap shipping cost to our country?

A: For small order, express will be best,and for bulk order, shipping by sea is better, but it takes much time.

Q: What is your MOQ?

A: In general ,our MOQ is 500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.

Q: Can you accept OEM or ODM?

A: Yes, we can accept OEM and ODM, but please offer your authorization certification.


Using Tips

1 When welding, any pressure applied to the terminals may cause conditions as looseness,deformation of terminals and electrical degradation.

2 For second time welding job, please proceed welding after it is recovered to room temperature. Continuous heating may cause loose off, deformation of terminals and electrical degradation.

3 When welding, water-soluble flux may causes corrosion to switches.

4 Don’t clean it with water.

5 After final assembly as a completed product, please make sure that there’s no erosion gas/materials released from peripheral parts/materials as it may causes contact failure of switches.

6 Keep it storage under normal temperature, humidity and prevent from direct sunshine,erosion gas. Products sure be used within 6 months.

7 For small quantity which taken from main packages, please keep it in plastic bags and sealed. And have it storage under up-mentioned environment.
