5 Pin 3 Speed Rotary Switch
  • 5 Pin 3 Speed Rotary Switch5 Pin 3 Speed Rotary Switch
  • 5 Pin 3 Speed Rotary Switch5 Pin 3 Speed Rotary Switch
  • 5 Pin 3 Speed Rotary Switch5 Pin 3 Speed Rotary Switch
  • 5 Pin 3 Speed Rotary Switch5 Pin 3 Speed Rotary Switch
  • 5 Pin 3 Speed Rotary Switch5 Pin 3 Speed Rotary Switch

5 Pin 3 Speed Rotary Switch

ELITE LEGION is a rotary switch manufacturer in China, you can rest assured to buy 5 pin 3 speed rotary switch from us and we will offer you the professional service and high quality rotary switch. Welcome new and old customers to continue to cooperate with us to create a better future together.

Send Inquiry

Product Description

ELITE LEGION is one of the professional 5 pin 3 speed rotary switch suppliers in China, in addition to existing features, we also accept customized features.The rotation angle of this 5 pin 3 speed rotary switch is 30°, it has been certified by ENEC, CB, and CQC. Welcome to buy 5 pin 3 speed rotary switch from us.


Product Specification Of ELITE LEGION 5 Pin 3 Speed Rotary Switch:

Brand

ELITE LEGION

Model

DHR31-A1L1-D11

Rating

16A 125/250V~50Hz T125

Rotation Angle

30°

Initial Contact Resistance

50mΩ Max

Insulation Resistance

> 100MΩ 500VDC

Withstand Voltage

1500VAC/Min

Electrical Life

10000 Cycles Min


Feature And Application Of ELITE LEGION 5 Pin 3 Speed Rotary Switch:

0 speed: OFF

1 speed: B3 power on

2 speed: A2,B3 power on

3 speed: A1,A2,B3 power on

This 5 Pin 3 Speed Rotary Switch is not only suitable for air coolers, but also for ovens, hanging ironing machine, foot bath bucket, electric hotpots, and so on.

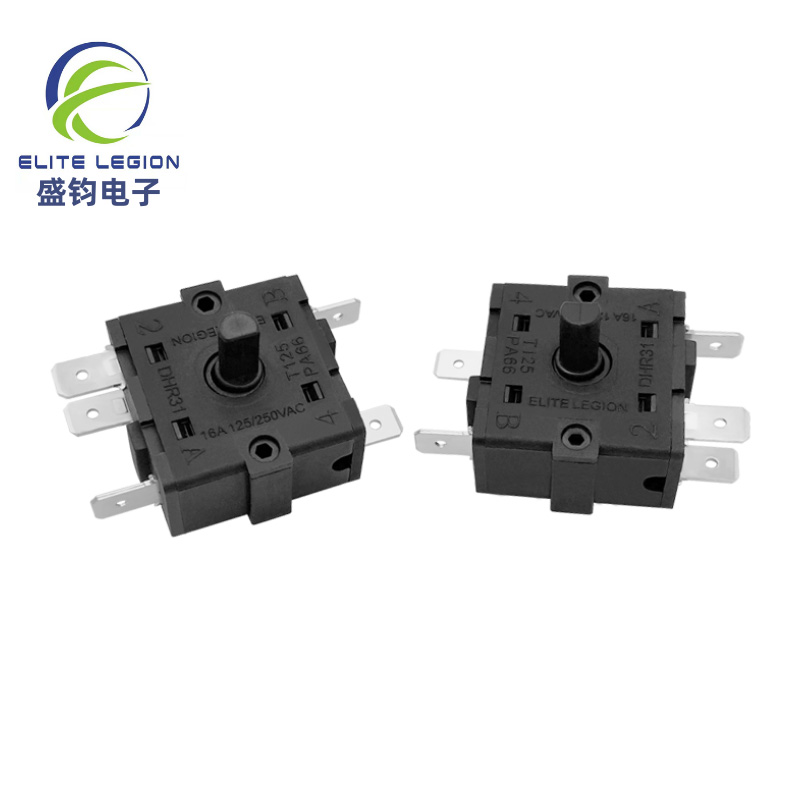

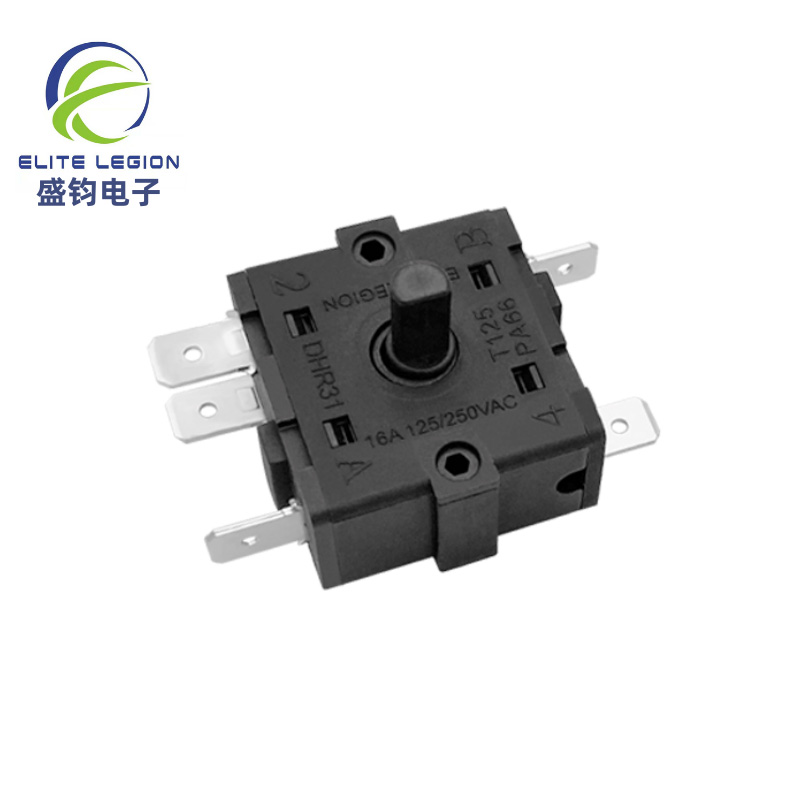

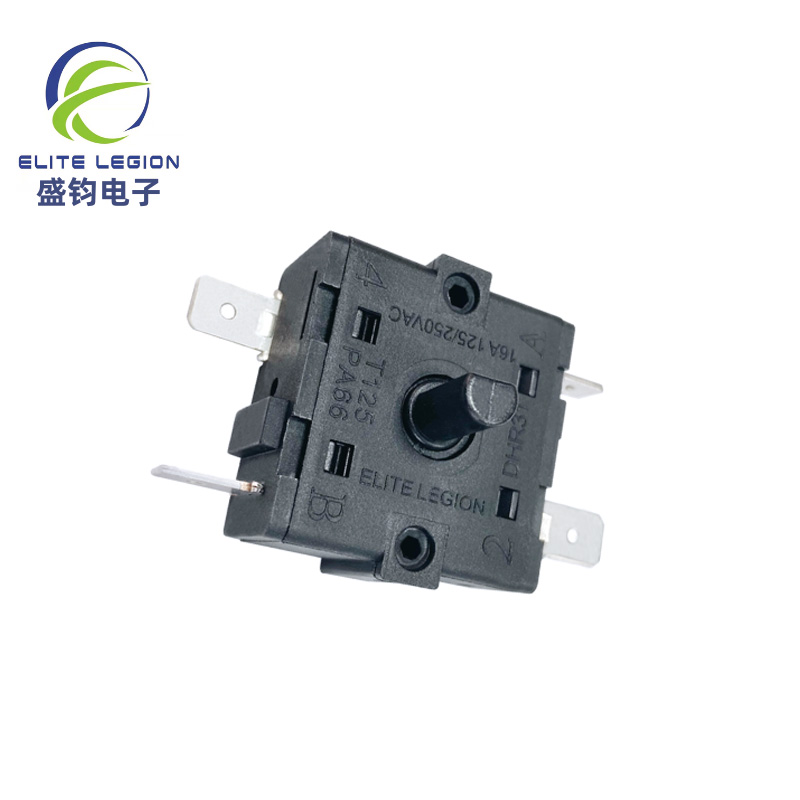

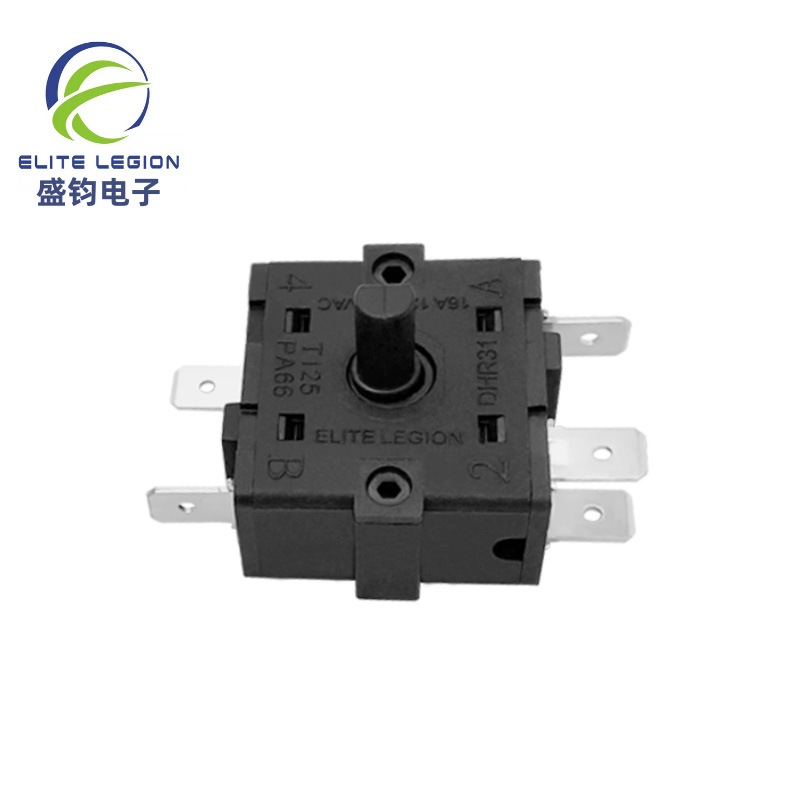

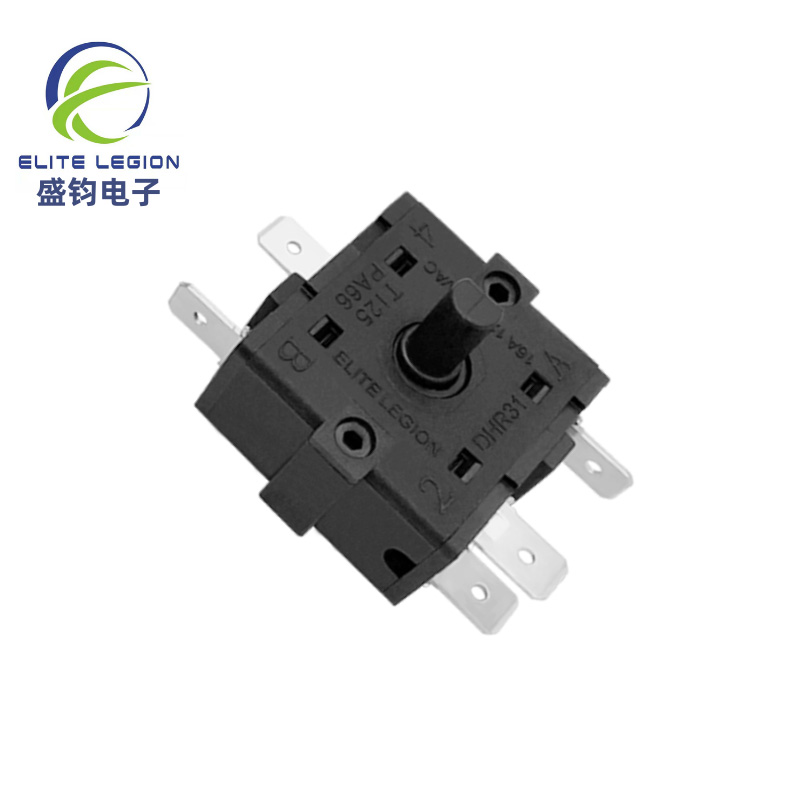

Details Of ELITE LEGION Air Cooler 5 Pin 3 Speed Rotary Switch:


Q&A

Q: Can you give me samples to test and how many samples?

A: Yes, we can provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 1~10 pcs.

Q: What is the delivery time?

A: 3-7 days for samples; 15-30 days for batch goods.

Q: Is there cheap shipping cost to our country?

A: For small order, express will be best,and for bulk order, shipping by sea is better, but it takes much time.

Q: What is your MOQ?

A: In general ,our MOQ is 500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.

Q: Can you accept OEM or ODM?

A: Yes, we can accept OEM and ODM, but please offer your authorization certification.


Using Tips

1 When welding, any pressure applied to the terminals may cause conditions as looseness,deformation of terminals and electrical degradation.

2 For second time welding job, please proceed welding after it is recovered to room temperature. Continuous heating may cause loose off, deformation of terminals and electrical degradation.

3 When welding, water-soluble flux may causes corrosion to switches.

4 Don’t clean it with water.

5 After final assembly as a completed product, please make sure that there’s no erosion gas/materials released from peripheral parts/materials as it may causes contact failure of switches.

6 Keep it storage under normal temperature, humidity and prevent from direct sunshine,erosion gas. Products sure be used within 6 months.

7 For small quantity which taken from main packages, please keep it in plastic bags and sealed. And have it storage under up-mentioned environment.
