4 Position 3 Speed Rotary Switch
  • 4 Position 3 Speed Rotary Switch4 Position 3 Speed Rotary Switch
  • 4 Position 3 Speed Rotary Switch4 Position 3 Speed Rotary Switch
  • 4 Position 3 Speed Rotary Switch4 Position 3 Speed Rotary Switch
  • 4 Position 3 Speed Rotary Switch4 Position 3 Speed Rotary Switch
  • 4 Position 3 Speed Rotary Switch4 Position 3 Speed Rotary Switch

4 Position 3 Speed Rotary Switch

ELITE LEGION as a China 4 Position 3 Speed Rotary Switch supplier, ELITE LEGION have rich research and development experience in the rotary switch industry. If you are looking for rotary switches made in China, please feel free to consult us.

Send Inquiry

Product Description

ELITE LEGION is one of the famous China Rotary switch manufacture,our factory specializes in manufacturing of rotary switch many years.The function of 4 position 3 speed rotary switch is OFF-1-2-3, we also support customization features, welcome to buy high quality rotary switch from ELITE LEGION,we will offer you the best after-sale service and timely delivery.


Product Specification Of ELITE LEGION 4 Position 3 Speed Rotary Switch:

Brand

ELITE LEGION

Model

MFR01-A1F03L1S-N

Rating

12(3)A125/250V T125μ

Rotation Angle

36°

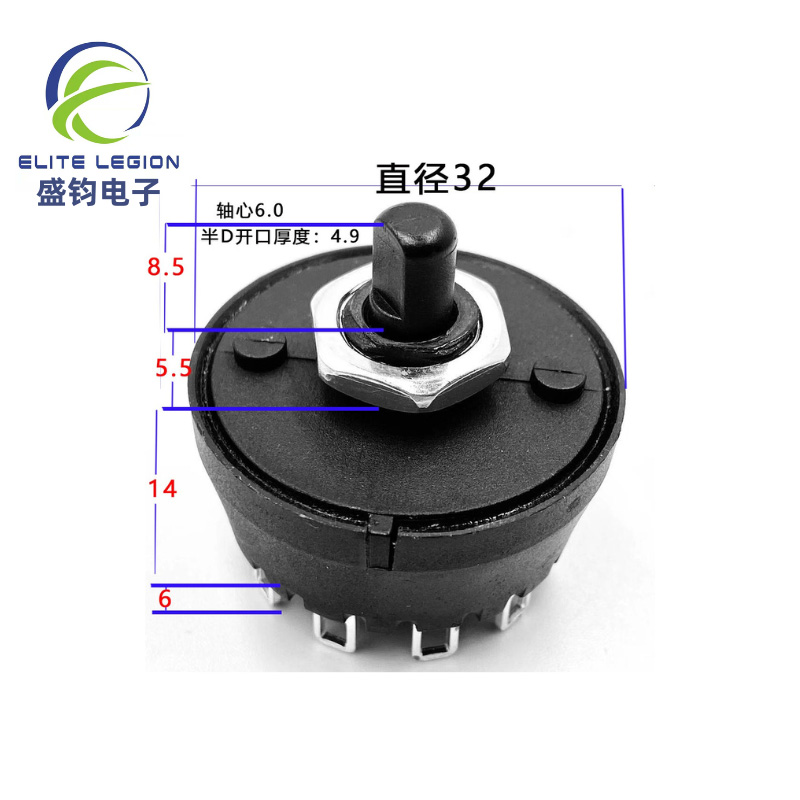

Diameter

32mm

Function Type

OFF-1-2-3

Initial Contact Resistance

50mΩMax

Insulation Resistance

> 100MΩ500VDC

Withstand Voltage

1KVAC/Min

Electrical Life

10000 Cycles Min


Feature And Application Of ELITE LEGION 4 Position 3 Speed Rotary Switch:

The 4 Position 3 Speed Rotary Switch has been widely used in blenders, juicers, FFU, meat grinders, air cooler, toys, lighting, etc.



Function List

Normal Function:

2 position 1 speed: OFF-1

3 position 2 speed: OFF-1-2

4 position 3 speed: OFF-1-2-3

5 position 4 speed: OFF-1-2-3-4

6 position 5 speed: OFF-1-2-3-4-5

7 position 6 speed: OFF-1-2-3-4-5-6

8 position 7 speed: OFF-1-2-3-4-5-6-7

9 position 8 speed: OFF-1-2-3-4-5-6-7-8

10 position 9 speed: OFF-1-2-3-4-5-6-7-8-9

10 position 10 speed: OFF-1-2-3-4-5-6-7-8-9-OFF...(360°rotation)


Momentary Function(Non-lock):

3 position 2 speed: Pause-OFF-1

4 position 3 speed: Pause-OFF-1-2

5 position 4 speed: Pause-OFF-1-2-3

6 position 5 speed: Pause-OFF-1-2-3-4

7 position 6 speed: Pause-OFF-1-2-3-4-5

8 position 7 speed: Pause-OFF-1-2-3-4-5-6

9 position 8 speed: Pause-OFF-1-2-3-4-5-6-7

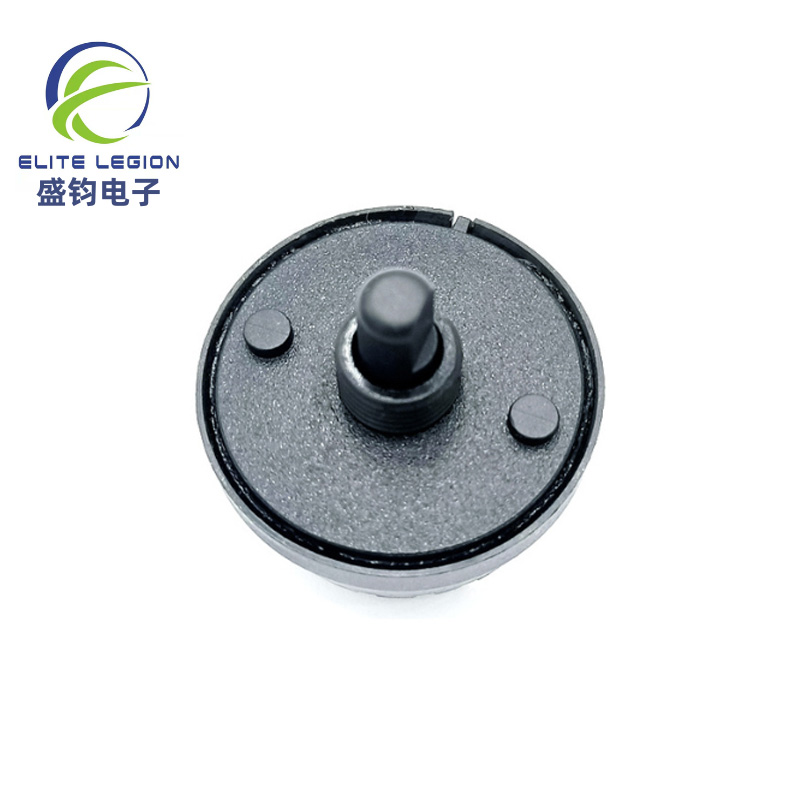

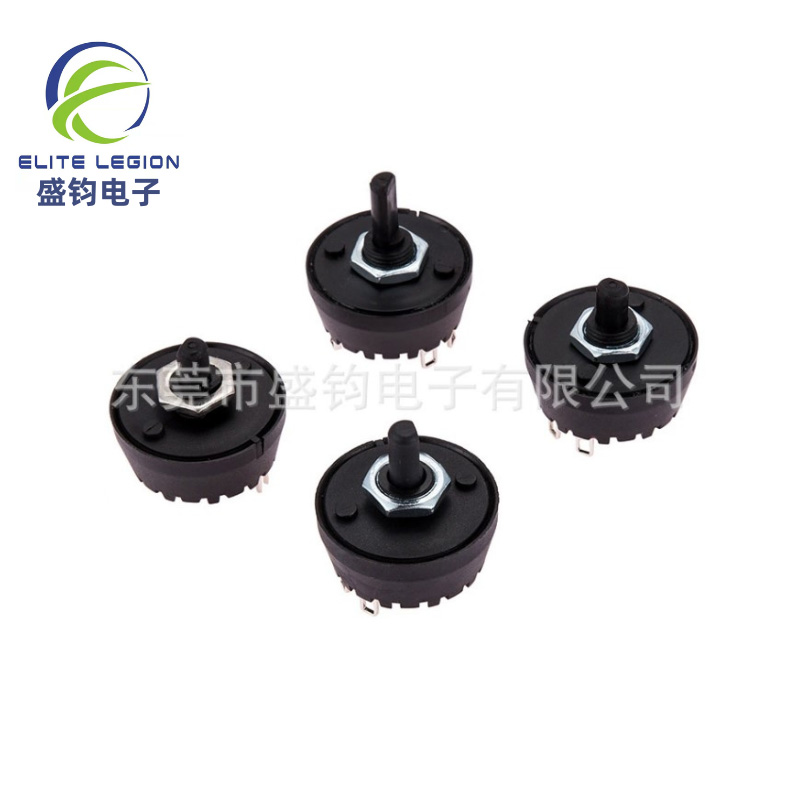

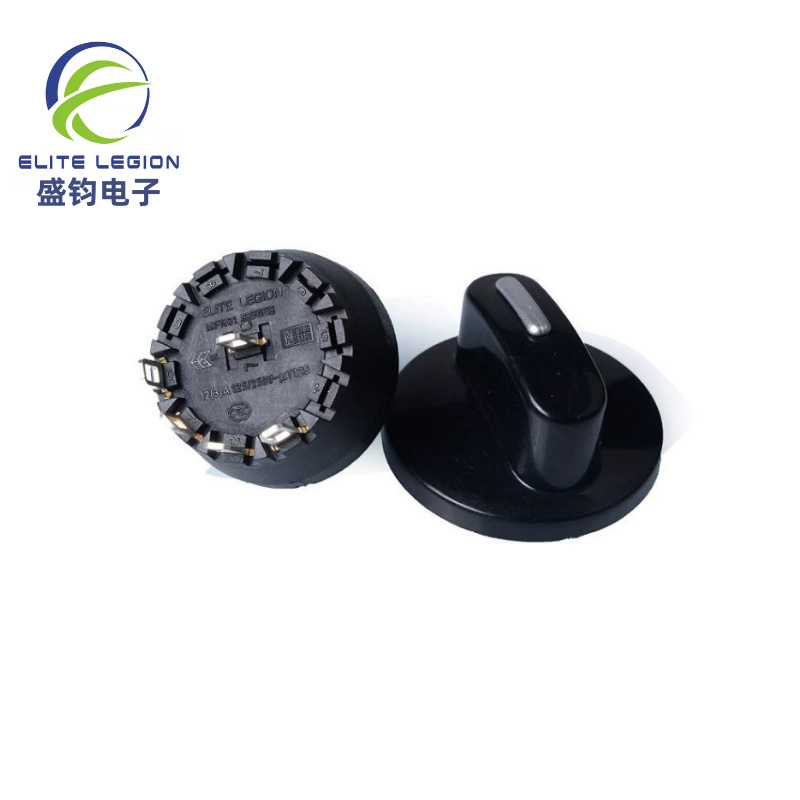

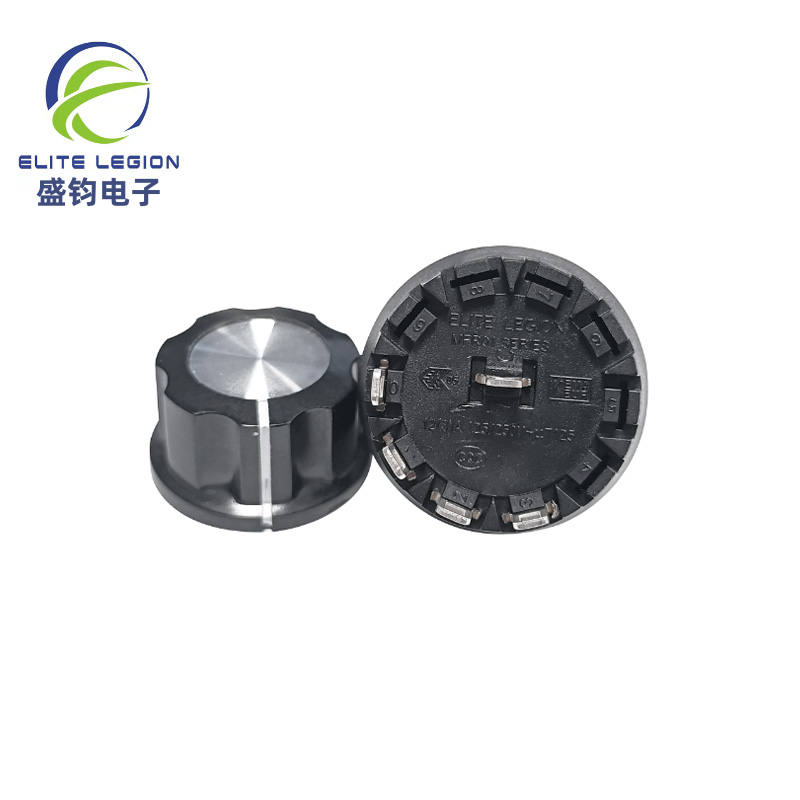

Details Of ELITE LEGION 4 Position 3 Speed Rotary Switch:


Q&A

Q: Can you give me samples to test and how many samples?

A: Yes, we can provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 1~10 pcs.

Q: What is the delivery time?

A: 3-7 days for samples; 15-30 days for batch goods.

Q: Is there cheap shipping cost to our country?

A: For small order, express will be best,and for bulk order, shipping by sea is better, but it takes much time.

Q: What is your MOQ?

A: In general ,our MOQ is 500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.

Q: Can you accept OEM or ODM?

A: Yes, we can accept OEM and ODM, but please offer your authorization certification.


Using Tips

1 When welding, any pressure applied to the terminals may cause conditions as looseness,deformation of terminals and electrical degradation.

2 For second time welding job, please proceed welding after it is recovered to room temperature. Continuous heating may cause loose off, deformation of terminals and electrical degradation.

3 When welding, water-soluble flux may causes corrosion to switches.

4 Don’t clean it with water.

5 After final assembly as a completed product, please make sure that there’s no erosion gas/materials released from peripheral parts/materials as it may causes contact failure of switches.

6 Keep it storage under normal temperature, humidity and prevent from direct sunshine,erosion gas. Products sure be used within 6 months.

7 For small quantity which taken from main packages, please keep it in plastic bags and sealed. And have it storage under up-mentioned environment.
