10 Position 10 Speed Rotary Switch
  • 10 Position 10 Speed Rotary Switch10 Position 10 Speed Rotary Switch

10 Position 10 Speed Rotary Switch

As a high-quality 10 Position 10 Speed Rotary Switch factory located in China . ELITE LEGION has accumulated rich R&D experience and the factory continuously expanded its production scale with years of development, if you have a need for rotary switches, please feel free to consult us for more product information.

Send Inquiry

Product Description

ELITE LEGION is rotary switch factory in China who can wholesale 10 position 10 speed rotary switch, the function of 10 position 10 speed rotary switch is OFF-1-2-3-4-5-6-7-8-9-10(360°), it can be used in motor ,toy, lighting,food processor etc. If you have any questions about this rotary switch, please feel free to consult us at any time.


Product Specification Of ELITE LEGION 10 Position 10 Speed Rotary Switch:

Brand

ELITE LEGION

Model

MFR01-A1F10L1S-N

Rating

12(3)A125/250V T125μ

Rotation Angle

36°

Diameter

32mm

Function Type

OFF-1-2-3-4-5-6-7-8-9-10(360°)

Initial Contact Resistance

50mΩ Max

Insulation Resistance

> 100MΩ 500VDC

Withstand Voltage

1KVAC/Min

Electrical Life

10000 Cycles Min


Feature And Application Of ELITE LEGION 10 Position 10 Speed Rotary Switch:

The 10 Position 10 Speed Rotary Switch has been widely used in fan, blenders, meat grinders, air cooler, toys, lighting, motor etc.


Function List:

Normal Function:

2 position 1 speed: OFF-1

3 position 2 speed: OFF-1-2

4 position 3 speed: OFF-1-2-3

5 position 4 speed: OFF-1-2-3-4

6 position 5 speed: OFF-1-2-3-4-5

7 position 6 speed: OFF-1-2-3-4-5-6

8 position 7 speed: OFF-1-2-3-4-5-6-7

9 position 8 speed: OFF-1-2-3-4-5-6-7-8

10 position 9 speed: OFF-1-2-3-4-5-6-7-8-9

10 position 10 speed: OFF-1-2-3-4-5-6-7-8-9-OFF...(360°rotation)


Momentary Function(Non-lock):

3 position 2 speed: Pause-OFF-1

4 position 3 speed: Pause-OFF-1-2

5 position 4 speed: Pause-OFF-1-2-3

6 position 5 speed: Pause-OFF-1-2-3-4

7 position 6 speed: Pause-OFF-1-2-3-4-5

8 position 7 speed: Pause-OFF-1-2-3-4-5-6

9 position 8 speed: Pause-OFF-1-2-3-4-5-6-7

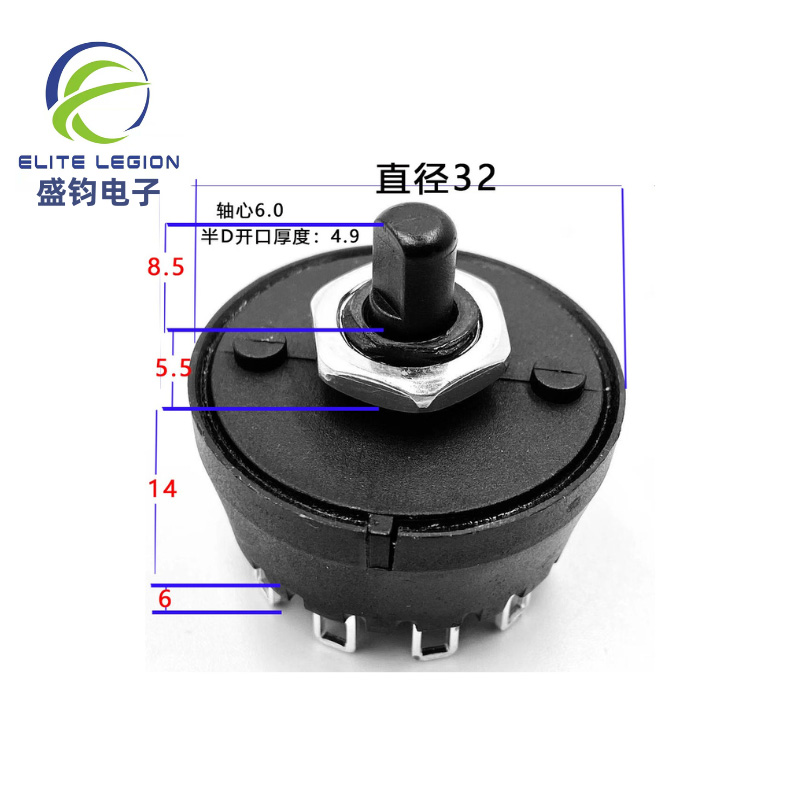

Details Of ELITE LEGION 10 Position 10 Speed Rotary Switch:


Q&A

Q: Can you give me samples to test and how many samples?

A: Yes, we can provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 1~10 pcs.

Q: What is the delivery time?

A: 3-7 days for samples; 15-30 days for batch goods.

Q: Is there cheap shipping cost to our country?

A: For small order, express will be best,and for bulk order, shipping by sea is better, but it takes much time.

Q: What is your MOQ?

A: In general ,our MOQ is 500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.

Q: Can you accept OEM or ODM?

A: Yes, we can accept OEM and ODM, but please offer your authorization certification.


Using Tips

1 When welding, any pressure applied to the terminals may cause conditions as looseness,deformation of terminals and electrical degradation.

2 For second time welding job, please proceed welding after it is recovered to room temperature. Continuous heating may cause loose off, deformation of terminals and electrical degradation.

3 When welding, water-soluble flux may causes corrosion to switches.

4 Don’t clean it with water.

5 After final assembly as a completed product, please make sure that there’s no erosion gas/materials released from peripheral parts/materials as it may causes contact failure of switches.

6 Keep it storage under normal temperature, humidity and prevent from direct sunshine,erosion gas. Products sure be used within 6 months.

7 For small quantity which taken from main packages, please keep it in plastic bags and sealed. And have it storage under up-mentioned environment.
