12A Rotation Angle 36° Rotary Switch
  • 12A Rotation Angle 36° Rotary Switch12A Rotation Angle 36° Rotary Switch
  • 12A Rotation Angle 36° Rotary Switch12A Rotation Angle 36° Rotary Switch
  • 12A Rotation Angle 36° Rotary Switch12A Rotation Angle 36° Rotary Switch
  • 12A Rotation Angle 36° Rotary Switch12A Rotation Angle 36° Rotary Switch
  • 12A Rotation Angle 36° Rotary Switch12A Rotation Angle 36° Rotary Switch

12A Rotation Angle 36° Rotary Switch

ELITE LEGION is a professional rotary switch manufacturer and supplier in China. We have been specialized in rotary switch for many years, We follow quality assurance, price conscience, and dedicated service. the rotary switches are of safety approved by ENEC, CB, and CQC. If you are interested in this 12A Rotation Angle 36° Rotary Switch, please contact with us.

Send Inquiry

Product Description

As one of the professional rotary switch factories in China, ELITE LEGION has multiple production lines and automation equipment. After years of development, ELITE LEGION has accumulated rich production experience.ELITE LEGION 12A Rotation Angle 36° rotary switches is not only suitable for juicer, also can suitable for other product, the rotary switch is made of fire-resistant nylon PA66 material, which meets the UL94V-0 standard, and the electrical life of this rotary switch can reach the standard of 10000 cycles.


Product Specification Of ELITE LEGION 12A Rotation Angle 36°Rotary Switch:

Brand

ELITE LEGION

Model

MFR01 Series

Rating

12(3)A125/250V T125μ

Rotation Angle

36°

Diameter

32mm and 29mm

Function Type

Normal Function and Momentary Function

Initial Contact Resistance

50mΩMax

Insulation Resistance

> 100MΩ500VDC

Withstand Voltage

1KVAC/Min

Electrical Life

10000 Cycles Min


Specification Drawing of Diameter 32mm Rotary Switch ( using normal function 2 position 1 speed as an example)


Specification Drawing of Diameter 29mm Rotary Switch (using normal function 2 position 1 speed as an example)


Feature And Application Of ELITE LEGION 12A Rotation Angle 36°Rotary Switch:

Normal Function:

2 position 1 speed: OFF-1

3 position 2 speed: OFF-1-2

4 position 3 speed: OFF-1-2-3

5 position 4 speed: OFF-1-2-3-4

6 position 5 speed: OFF-1-2-3-4-5

7 position 6 speed: OFF-1-2-3-4-5-6

8 position 7 speed: OFF-1-2-3-4-5-6-7

9 position 8 speed: OFF-1-2-3-4-5-6-7-8

10 position 9 speed: OFF-1-2-3-4-5-6-7-8-9

10 position 10 speed: OFF-1-2-3-4-5-6-7-8-9-OFF...(360°rotation)


Momentary Function(Non-lock):

3 position 2 speed: Pause-OFF-1

4 position 3 speed: Pause-OFF-1-2

5 position 4 speed: Pause-OFF-1-2-3

6 position 5 speed: Pause-OFF-1-2-3-4

7 position 6 speed: Pause-OFF-1-2-3-4-5

8 position 7 speed: Pause-OFF-1-2-3-4-5-6

9 position 8 speed: Pause-OFF-1-2-3-4-5-6-7

The 12A Rotation Angle 36°Rotary power switches has been widely used in blenders, juicers, FFU, meat grinders, air cooler, toys, lighting, etc.

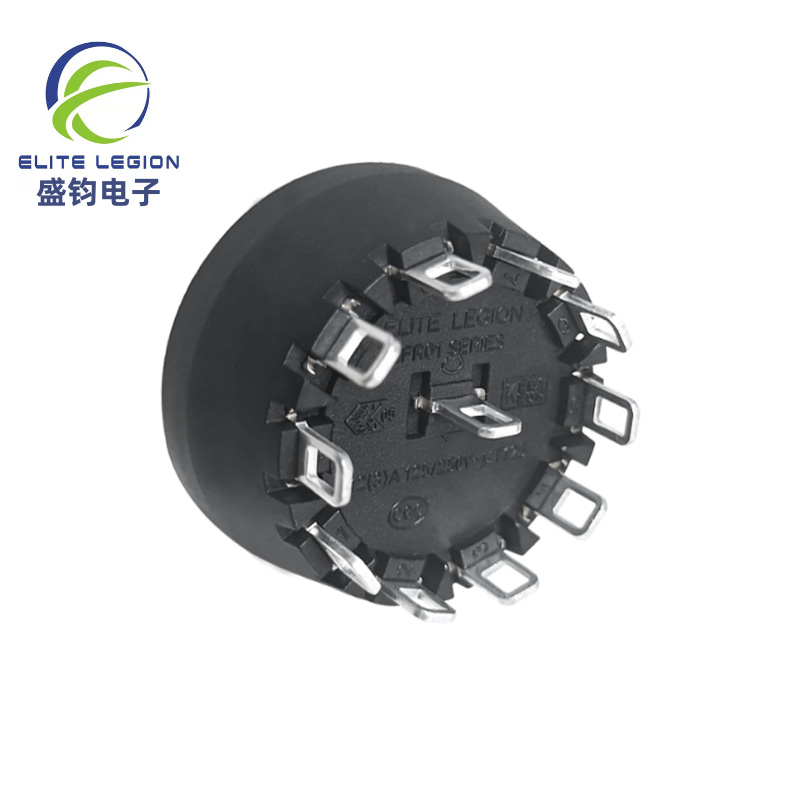

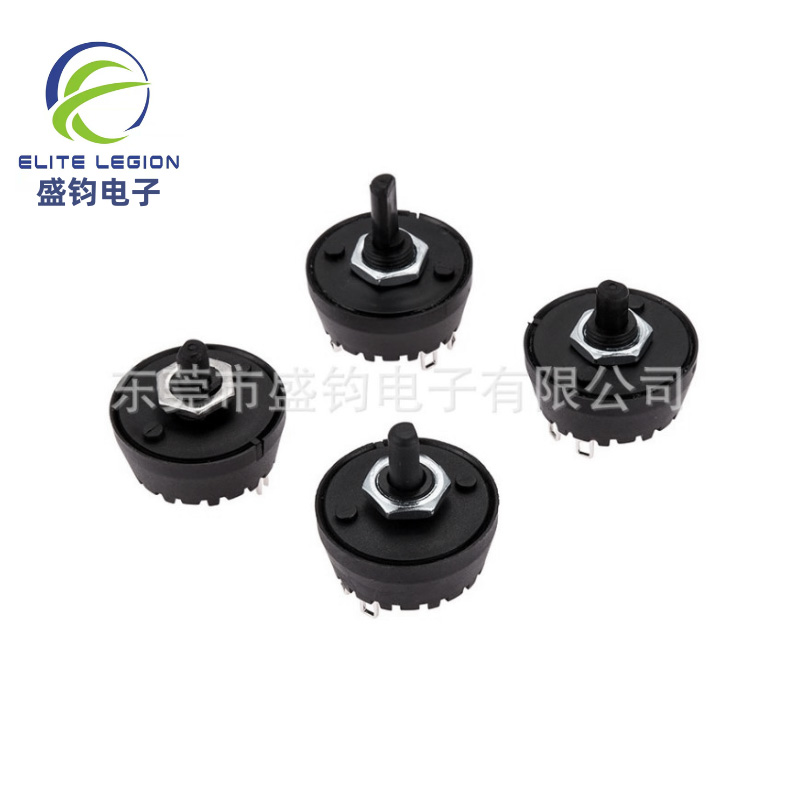

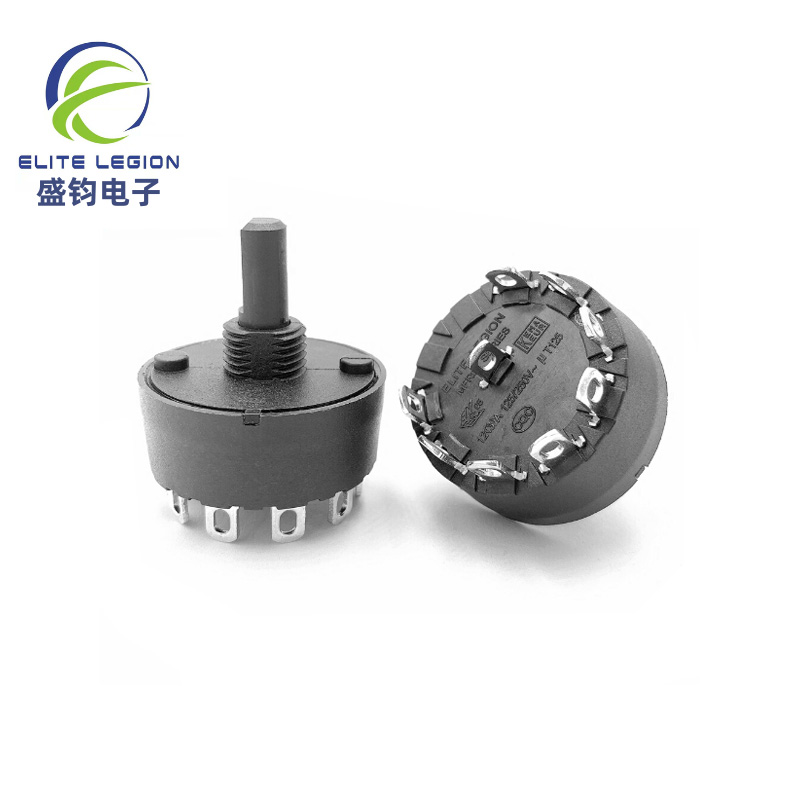

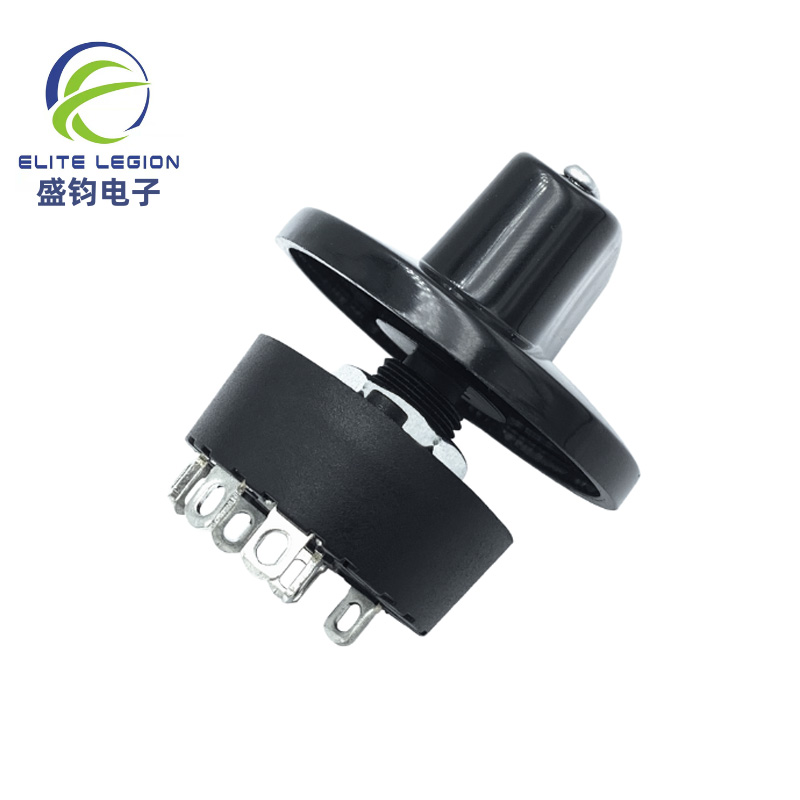

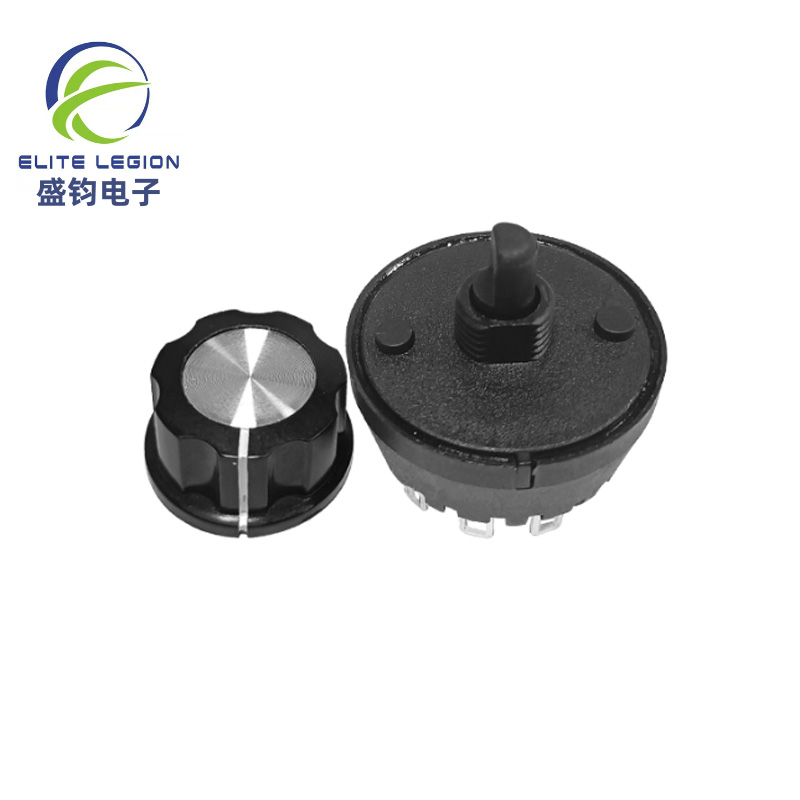

Details Of ELITE LEGION 12A Rotation Angle 36°Rotary Switch:


Q&A

Q: Can you give me samples to test and how many samples?

A: Yes, we can provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 1~10 pcs.

Q: What is the delivery time?

A: 3-7 days for samples; 15-30 days for batch goods.

Q: Is there cheap shipping cost to our country?

A: For small order, express will be best,and for bulk order, shipping by sea is better, but it takes much time.

Q: What is your MOQ?

A: In general ,our MOQ is 500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.

Q: Can you accept OEM or ODM?

A: Yes, we can accept OEM and ODM, but please offer your authorization certification.


Using Tips

1 When welding, any pressure applied to the terminals may cause conditions as looseness,deformation of terminals and electrical degradation.

2 For second time welding job, please proceed welding after it is recovered to room temperature. Continuous heating may cause loose off, deformation of terminals and electrical degradation.

3 When welding, water-soluble flux may causes corrosion to switches.

4 Don’t clean it with water.

5 After final assembly as a completed product, please make sure that there’s no erosion gas/materials released from peripheral parts/materials as it may causes contact failure of switches.

6 Keep it storage under normal temperature, humidity and prevent from direct sunshine,erosion gas. Products sure be used within 6 months.

7 For small quantity which taken from main packages, please keep it in plastic bags and sealed. And have it storage under up-mentioned environment.
